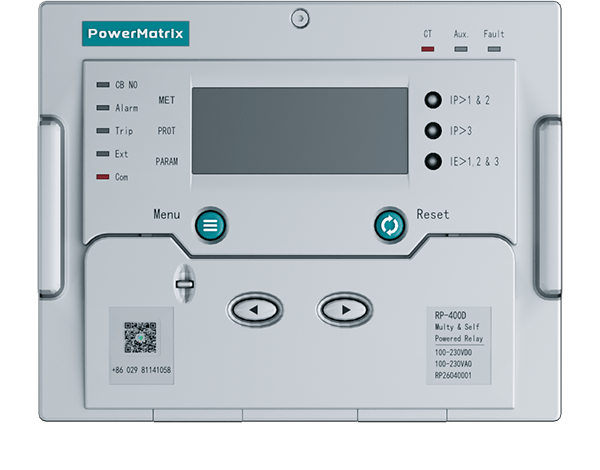

Conventional relay protection relies on external power and risks outage failure amid disasters and extreme weather. The RP-400 passive protection device takes power from CT secondary circuits, eliminating external power dependence and enabling maintenance-free feeder protection.

Main Function Features

CT Self-power Supply Low Pickup Current High Sampling Accuracy Multiple Power Supply Modes Maintenance-free Live Hot Plugging

Ratings & Specifications

Auxiliary Power Supply100-230VAC/DC,≤4W;
AC Sampling Current Rated 1A;
Trip Output24VDC — 135mJ;
Altitude＜5000m;
Minimum Pickup Current3-phase: 70mA; 2-phase: 100mA; 1-phase: 150mA;
Measuring Range0.2~20A;
Operating Temperature -20~70℃;
Debug Power SupplyUSB 5V;

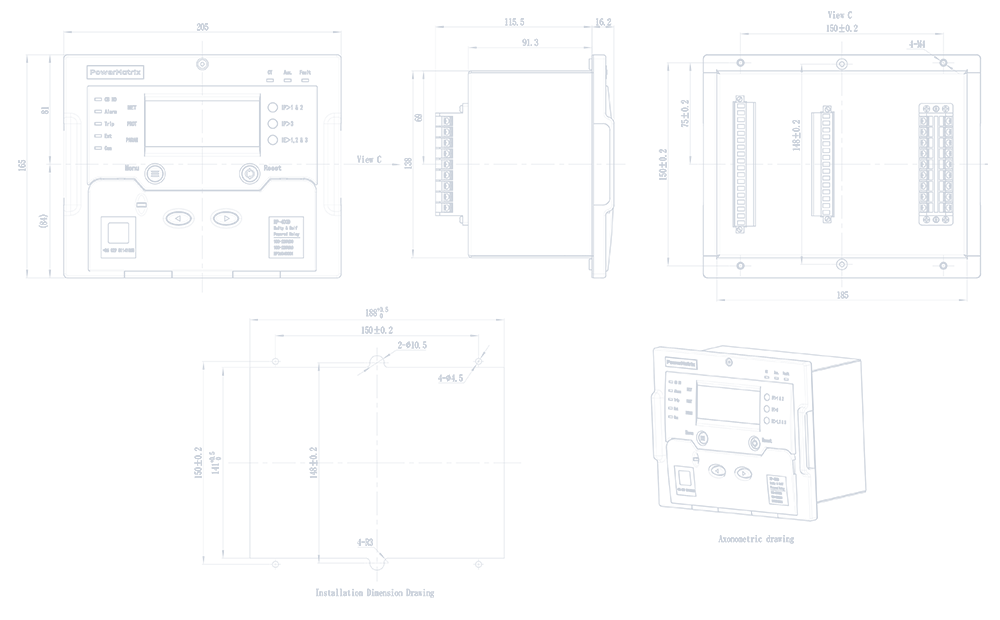

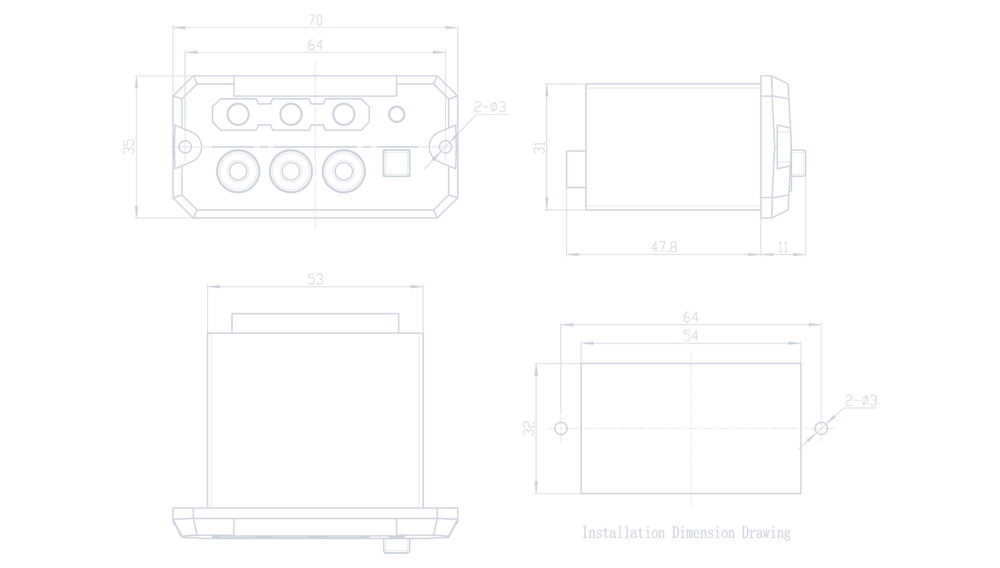

Outline dimension

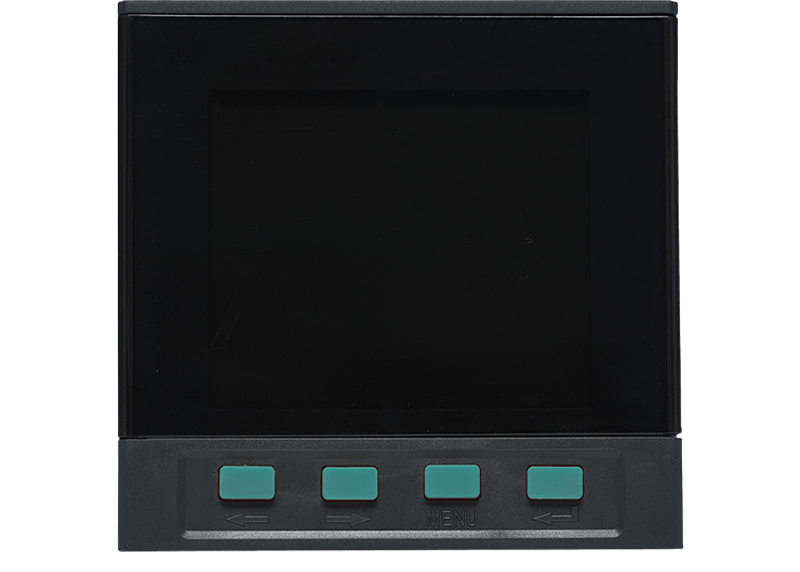

This multi-functional power meter monitors key electrical parameters widely in power systems, industry and buildings. It features switch I/O, pulse output and RS485, with optional harmonic analysis, power statistics and event recording for power automation monitoring.

Main Function Features

Alarm output Communication interface Switch detection Digital calibration In-place display Analogue output

Ratings & Specifications

Rated voltageStandard:AC220V Optional:AC/DC80-265V
Power consumption<5VA
Ambient temperature-10~+50℃
Ambient humidity≤85%RH
Insulation resistance≥20MΩ
Insulation strengthPower source & output >2kV50Hz/1min
Altitude≤3000m
Installation modeEmbedded panel installation

Outline dimension

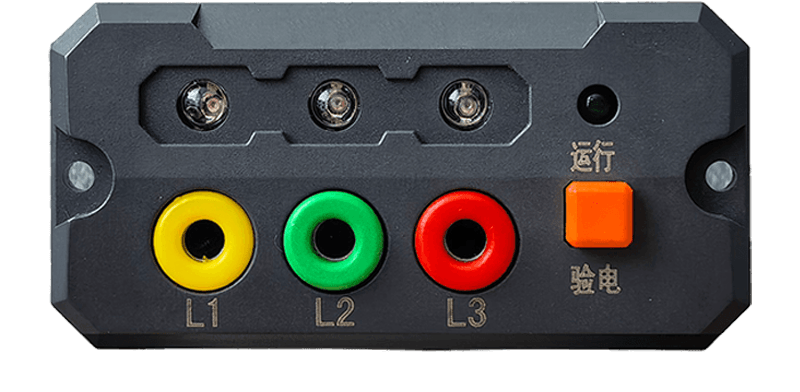

This product offers real-time switchgear circuit voltage feedback for maintenance staff. With built-in low-power LEDs, it features low consumption, stable performance and high reliability. Suitable for 3.6～40.5kV indoor high-voltage equipment, it monitors live circuits and boosts equipment anti-misoperation ability with switches.

Main Function Features

Circuit Voltage Condition Monitoring Low Power & Stable Performance Adaptable to High-Voltage Environments Linked Anti-misoperation Interlock

Ratings & Specifications

Working Power SupplyAC/DC110V/220V or DC48V或DC24V(Please specify when ordering)
Applicable Voltage Class3.6KV~40.5KV
Pickup Voltage15%~40%Un
Contact Rating5A/250V AC or 5A/30V DC
Power Consumption≤5W
Ambient Temperature-25°C~+60°C
Relative Humidity (RH)Daily average≤95%，monthly average≤90%

Outline dimension

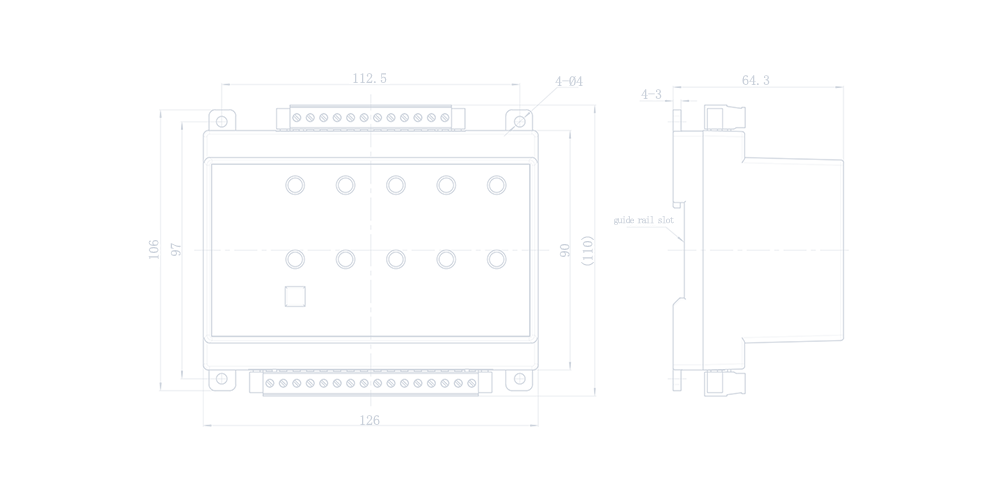

The ICS-SR2/BR2 intelligent motor controller is designed for dual-motor position switches. It optimizes control programs, simplifies secondary wiring, realizes precise intelligent control, and offers fault protection for driving motors under abnormal conditions.

Main Function Features

Simplified secondary wiring Intelligent and precise control Motor fault protection

Ratings & Specifications

Operating VoltageAC/DC220V，AC/DC110V（AC/DC Universal）
Ambient temperature-25ºC～+70ºC
Altitude≤2500m
Installation modeDefault: DIN rail mounting
